47367 Tamiya | Manta Ray

This re-release of the Manta Ray is certainly news to celebrate for fans of Tamiya vintage 4WD buggy models!

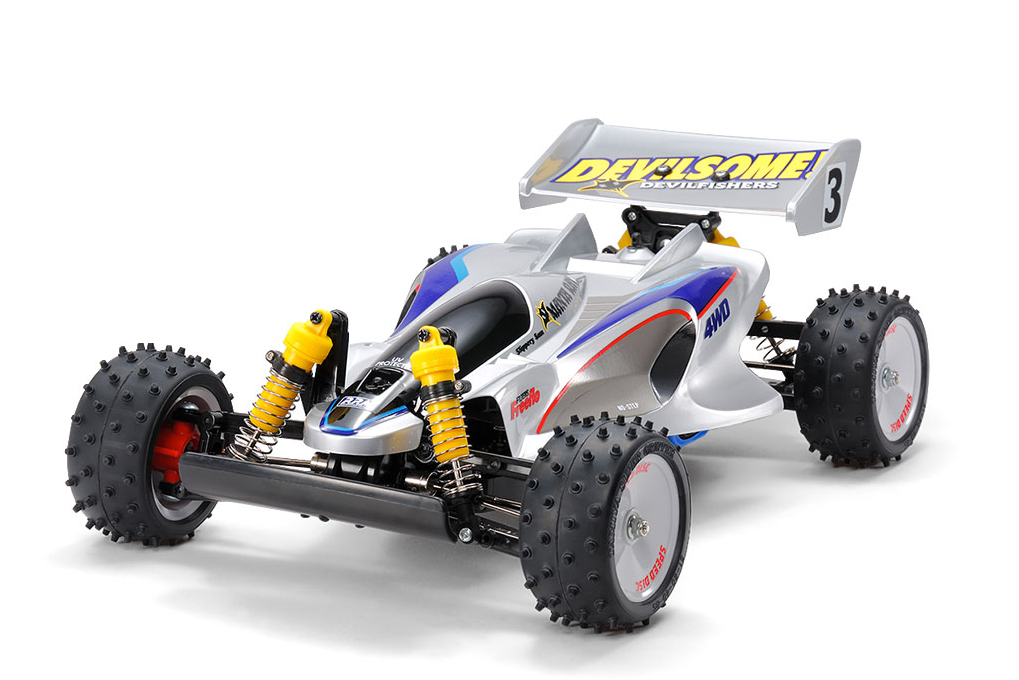

The body - inspired by the watergoing ray of the natural world - is still a classic nearly 30 years on from its original release in 1990; it and the large rear wing are moulded in lightweight and tough polycarbonate. Stylish dish type wheels are paired with spike tires for superlative grip on- or off-road.

For those looking for even greater performance, why not pair with our dedicated Hop-Up Option parts set?

A Rugged 4WD Chassis

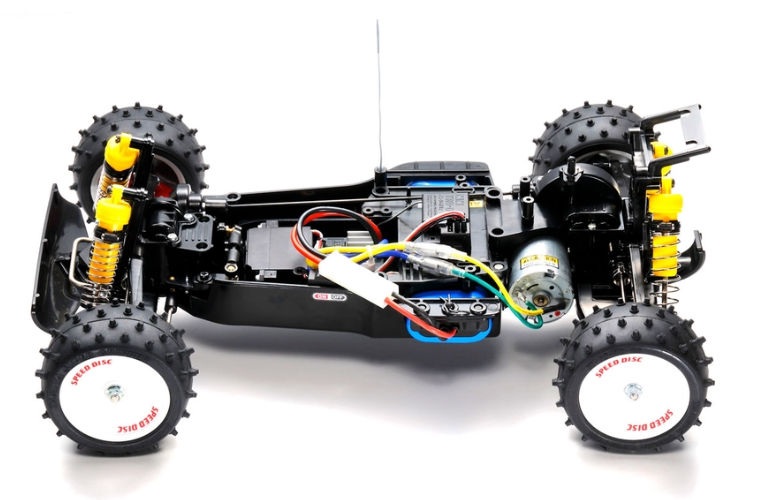

This kit's 4WD chassis is based around a bathtub frame with honeycomb rib pattern for excellent rigidity, and which also facilitates a low centre of gravity thanks to a low attachment position for the battery pack. Its 4-wheel independent double wishbone suspension employs CVA oil dampers, while lightweight and durable hollow lower arms feature a smooth design to discourage dirt from sticking to them.

Differential gears are contained in sealed gearboxes, each with a quick-access maintenance hatch. The 3-piece steering tie-rod gives sharp response, and ball adjusters allow easy altering of toe angle.

Specifications
★Length: 395mm, Width: 250mm, Height: 145mm

★Wheelbase: 270mm

★Weight (excluding R/C equipment and battery pack): 1,100g

★Tread: 207mm (Front & Rear)

★Bathtub-type Chassis Frame

★Shaft-Driven 4WD

★Front/Rear 3-Bevel Differentials

★3-Piece Steering Tie-Rod

★4-Wheel Double Wishbone Suspension

★Tire Width/Diameter: 40/84mm (Front & Rear)

★CVA Short Oil Shock Units

★Gear Ratio=8.59:1 (with kit-included 21T pinion gear)

★Type 540 Motor

★Requires an Electronic Speed Controller (sold separately)

Separately Required Items
★2-Channel R/C Unit with ESC

★Battery Pack & Charger

★R6/AA/UM3 batteries for transmitter
