47446 Tamiya | Plasma Edge Gun Metal - Limited Edition

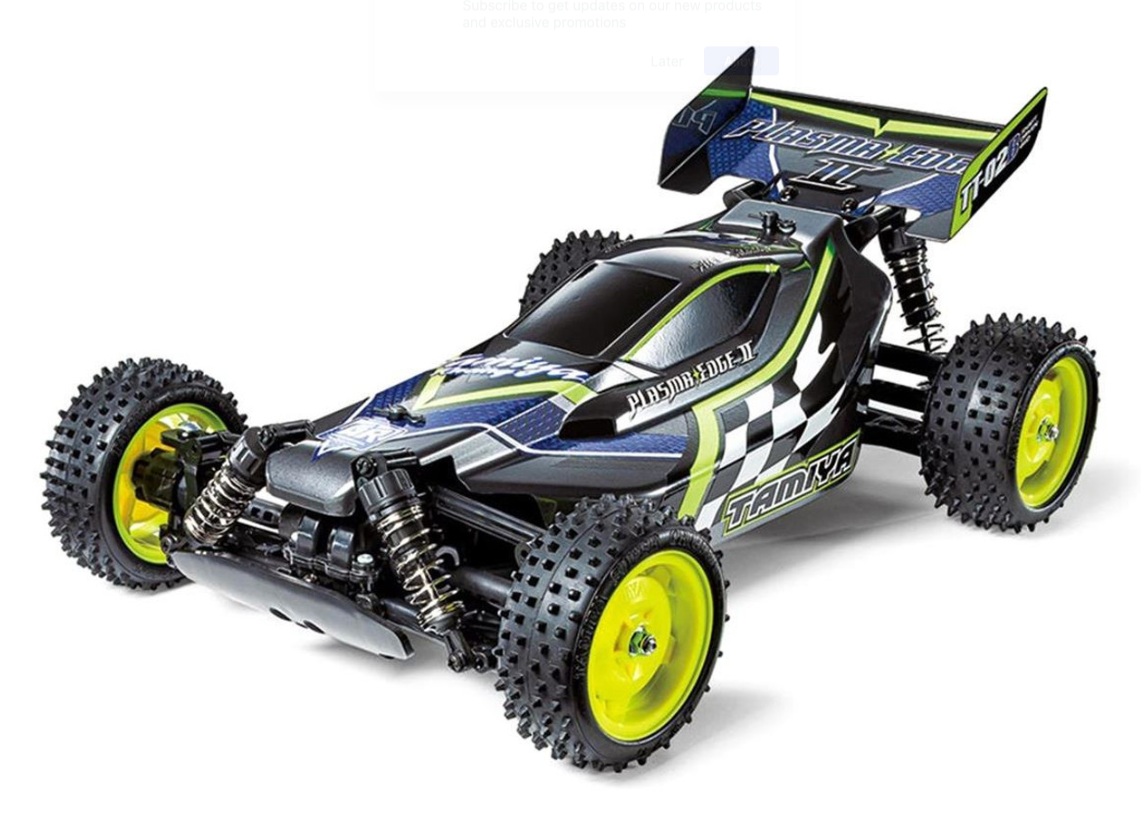

The Tamiya Plasma Edge II TT-02B 1/10 4WD Electric Buggy Kit features a limited edition body with a pre-painted gun metal colour. The body sit on top of the TT-02B, which is a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb controllability.

TT-02 B

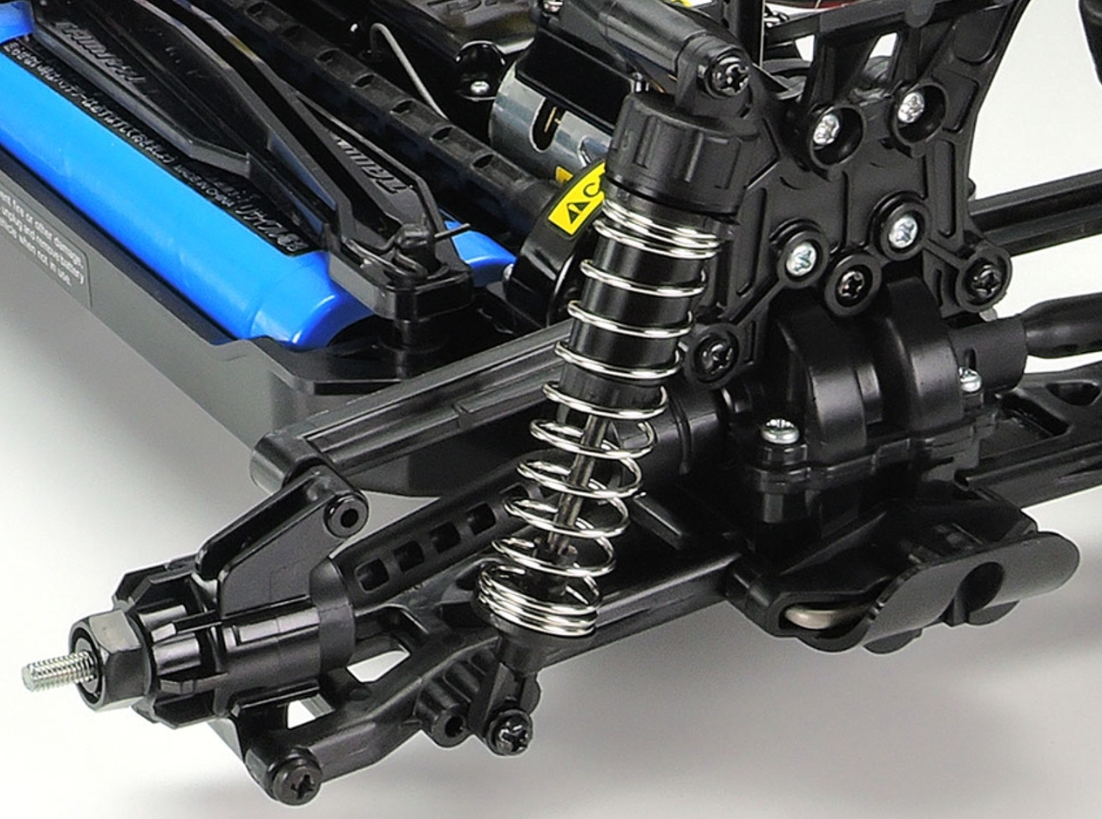

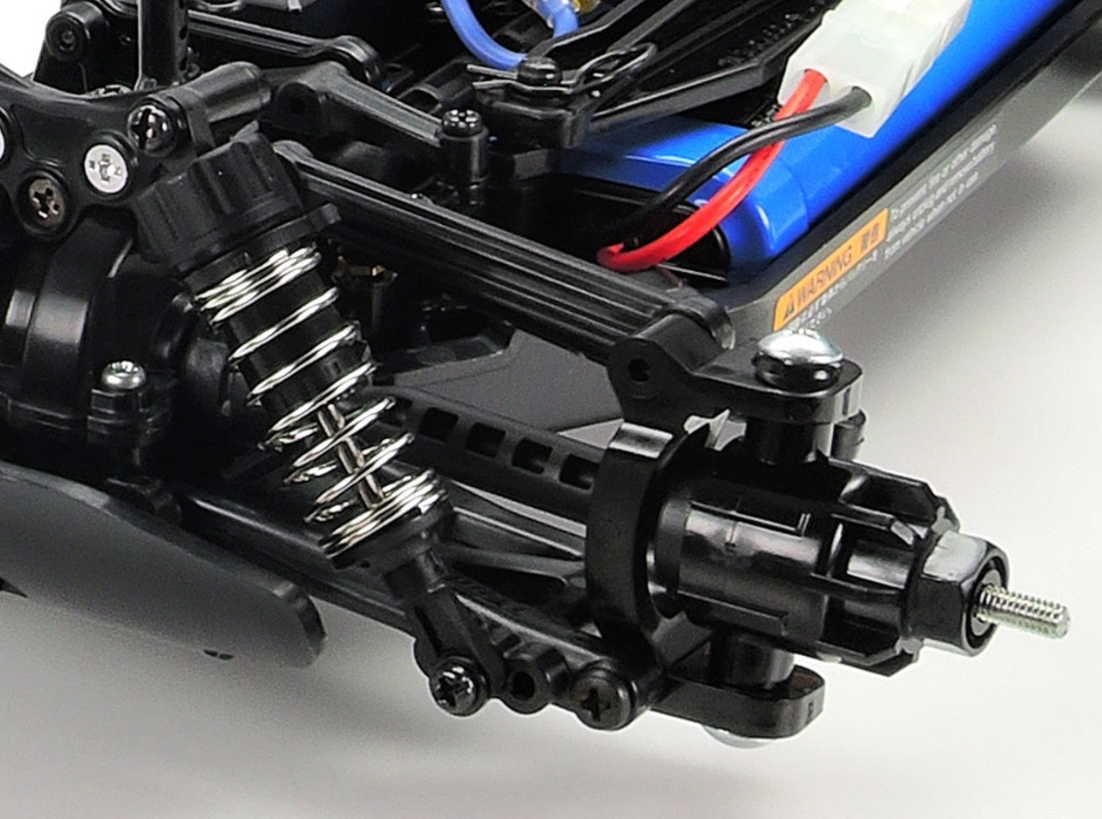

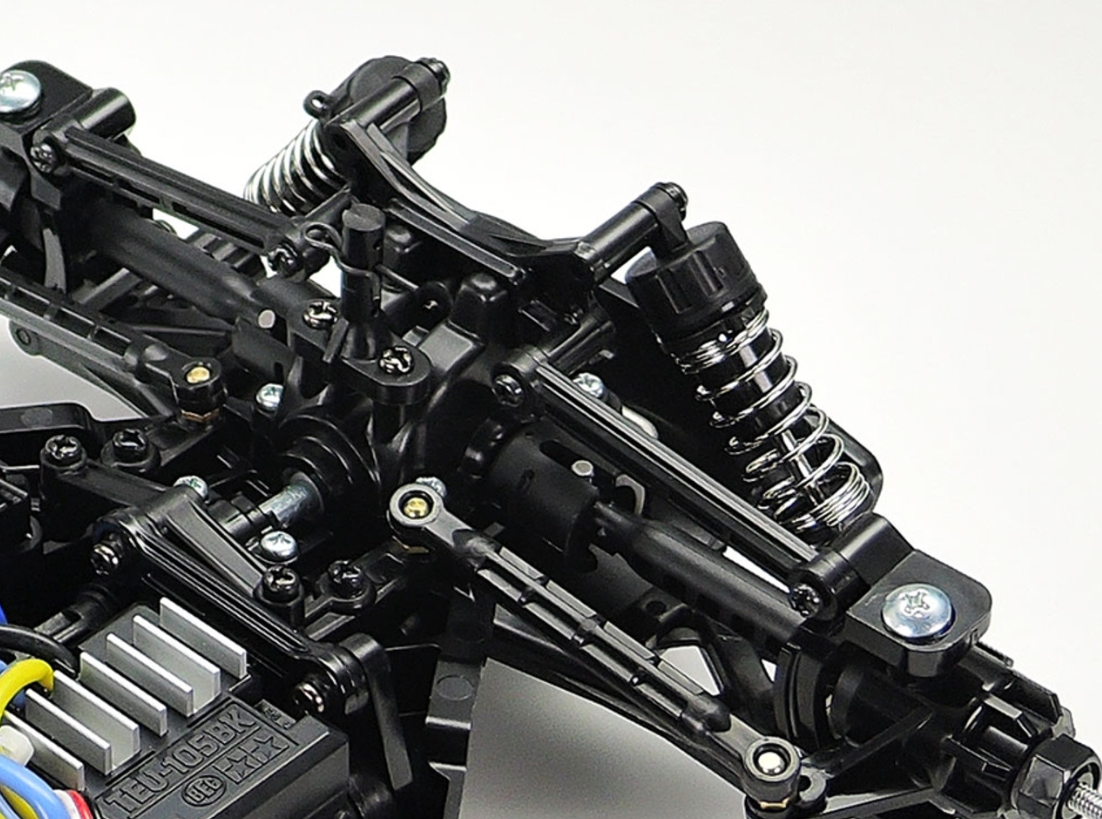

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside.

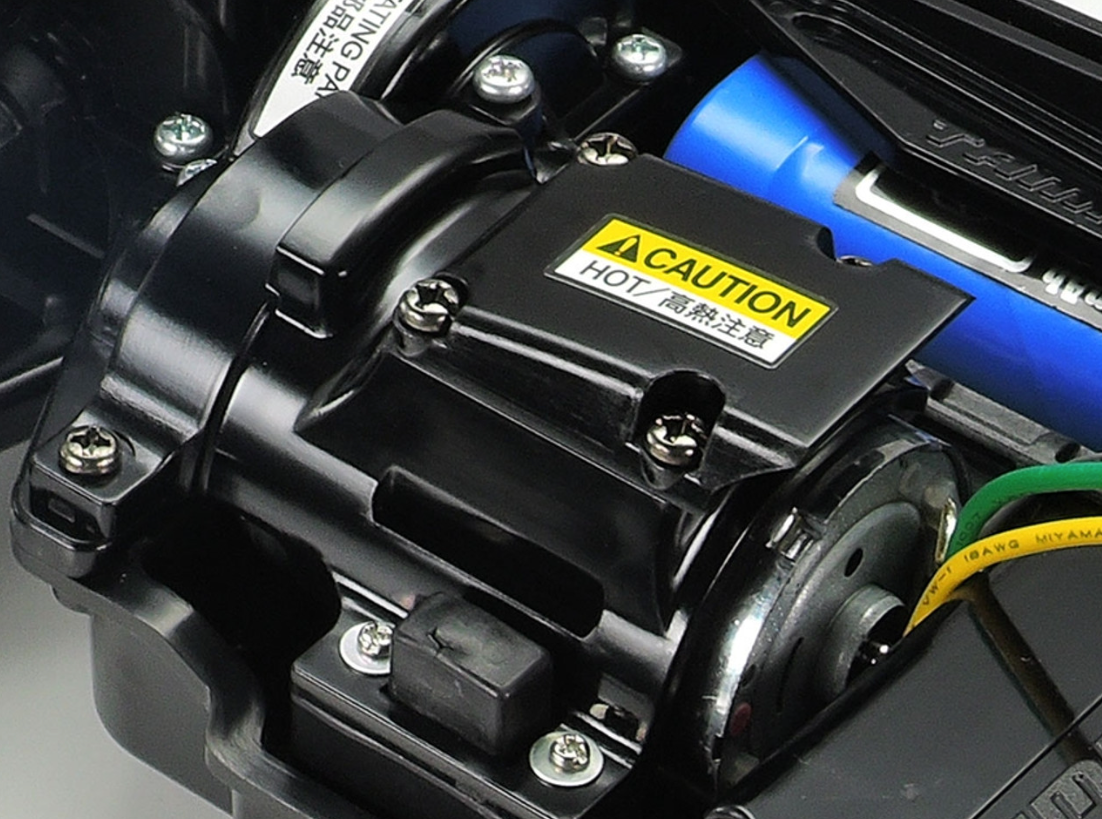

The top can be removed simply by loosening a few screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

Key Features:

• 1/10 scale R/C model assembly kit
• The stylish polycarbonate single-seater buggy body and wing are pre-painted in PS-23 Gun metal
• The TT-02B chassis is the buggy evolution of Tamiya's popular 4WD entry level unit, the TT-02 chassis
• Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low center of gravity
• 4-wheel double wishbone suspension features long arms and CVA shock units, and is combined with high- grip square spike tires to give excellent traction
• Front and rear gearboxes have differentials to ensure smooth cornering

A wide range of Hop-Up Option parts are available to tune the TT-02B chassis
Includes Tamiya 540-Torque Tuned motor

What's In The Box?

Tamiya 1/10 Plasma Edge II Kit

• Pre-Painted Polycarbonate Body Shell
• Decal Sheet
• Instruction Manual

Require for Operation (Not Included)

• 2-channel radio
• Steering servo
• Electronic Speed Controller
• 7.2volt battery & battery charger

Technical Specifications:

• Length: 370mm
• Width: 250mm
• Height: 160mm
• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate
• Body Stickers: Included
• Chassis Material: ABS Plastic
• Chassis Type: TT-02B
• Construction Type: Assembly Kit
• Differential Type: Gear
• Drive Type: 4WD
• Motor: 540-brushed type
• Scale: 1/10
• Shock Damper: Friction type
• Suspension: 4-wheel fully independent double wishbone
• Terrain Use: Off-Road
