58374 Tamiya | Sand Viper

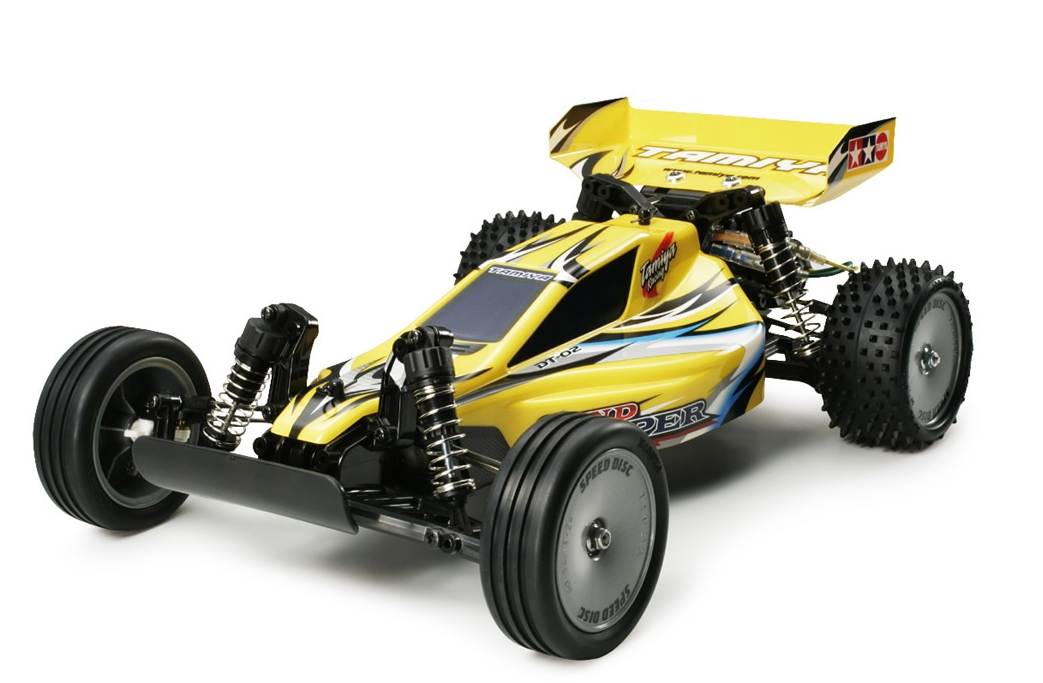

Tamiya item 58374 - Sand-Viper DT02 - 1/10 scale 2WD RWD Electric Powered Off-Road Buggy assembly kit

Introducing Tamiya's newest release on the DT-02 chassis, Sand-Viper!

This 1/10 scale 2WD assembly off-road buggy continues in the vein of our successful Desert Gator buggy, but will feature an all-new body and wing shape, together with dish type wheels.

Versatile and reliable DT-02 chassis features transverse mounted Type RS540 motor and 4-wheel double wishbone suspension. Full ball bearings ensure maximum efficiency and a long-life of dirt tearing action!
Features:

• High performance 2WD off road buggy assembly kit.
• 4-wheel independent double wishbone suspension with oil dampers secures stable running.
• Suspension upper arms use double-ended shafts, enabling fully adjustable camber angle.
• Type 540 motor.
• Differential gear gearbox is fully sealed from dirt and stones, ensuring a long life of smooth handling.
• Drive shaft features joint cup made of highly durable metal.
• Full ball bearing configuration offers maximum engine efficiency.
  Features wide grooved front tires and spiked rear tires for excellent off-road ability.
• Newly designed body and wing shape
• Wheels are racey off-road dish type

Specifications:

• Length: 384mm
• Width: 248mm
• Height: 140mm
• Wheelbase: 260mm
• Lowest Ground Clearance: 26mm
• Weight: 1042g
• Motor: Type 540
• Drivetrain: Rear Wheel Drive
• Tread: (Front & Rear) 216mm/208mm
• Diff. Gear: 3-bevel diff.
• Steering Tie Rod: 2-piece
• Suspension: 4-wheel Double Wishbone
• Gear Ratio: 9.28:1
• Hobbywing 1060 ESC included.
• Electric Kits Require: (unless stated differently above)

Radio: 2-Channel with servo(s)
Battery: 6-cell flat with standard Tamiya connector
Charger: AC/DC timed or peak for 6-cell battery
Paint: PS for Polycarbonate/TS for ABS
Misc. Items: Building and track equipment
