58577 Tamiya | Nova Fox

Back on the Track!

This is an update of a popular 2WD buggy model which was a stablemate of the famous Hotshot in the late 1980s.

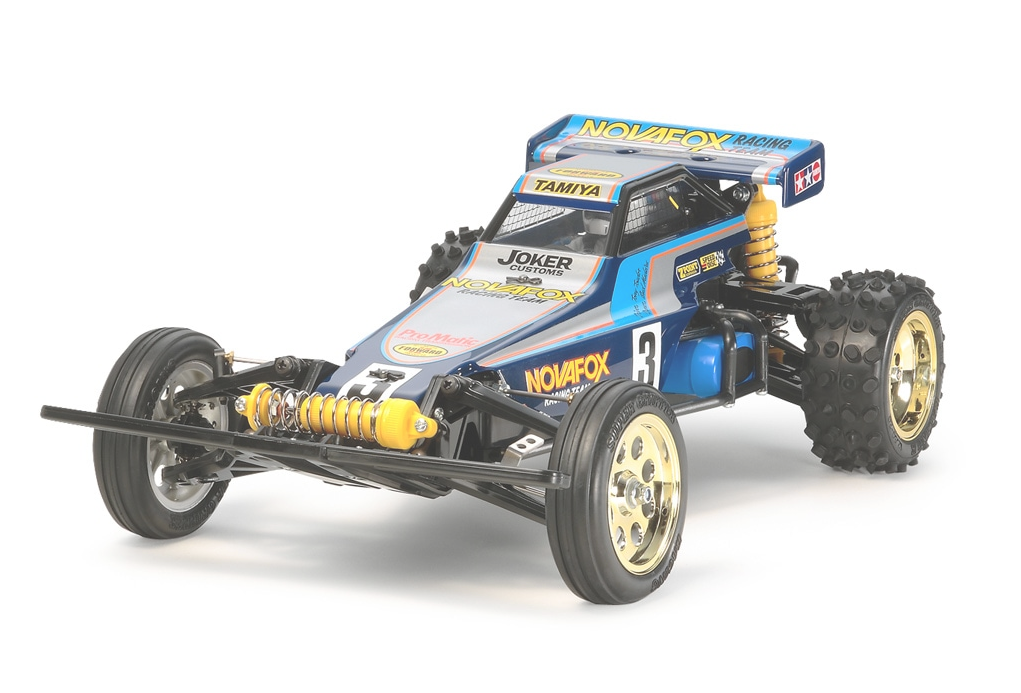

The elegant, slim polycarbonate body brings to mind the image of a full-size racing buggy, and its markings take inspiration from the original model. Jazzy gold color metal-plated wheels are fitted with front ribbed and rear oval block tires for excellent off-road performance. The model includes a driver figure to install in the cockpit.

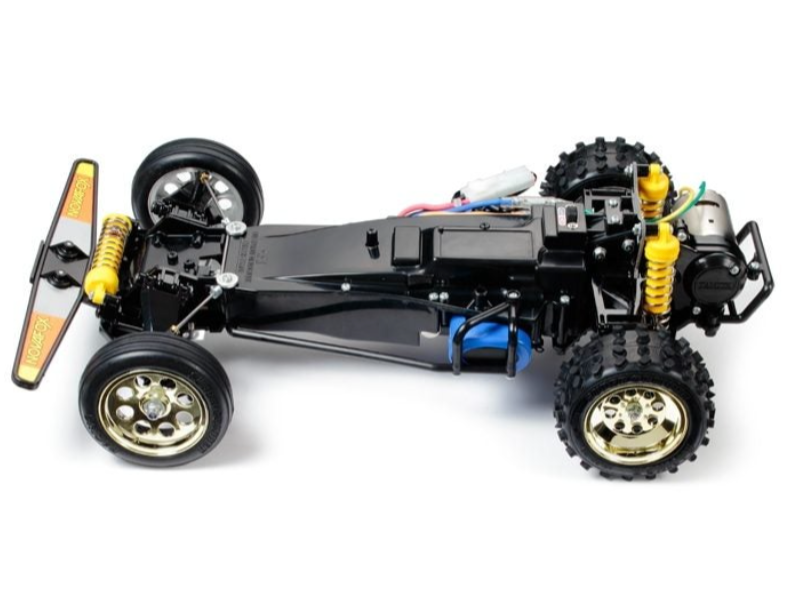

Updated Rear-Wheel 2WD Off-Road Chassis

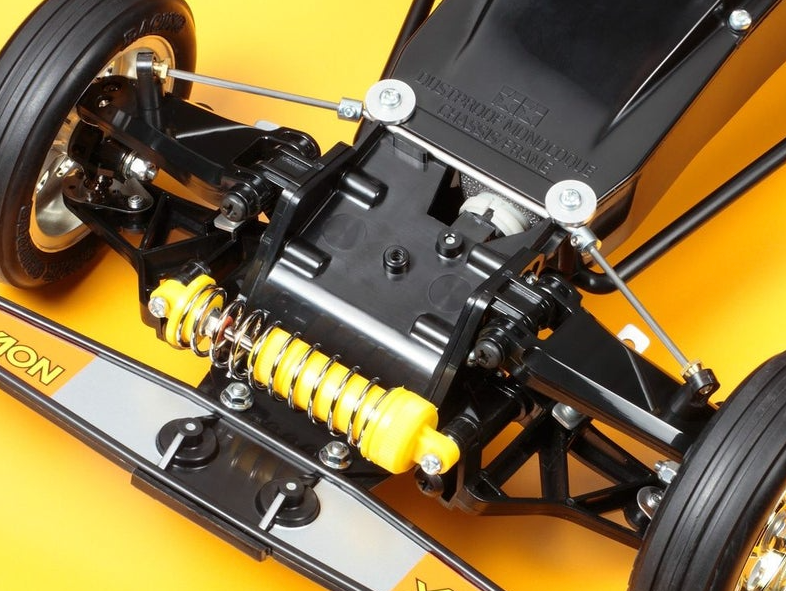

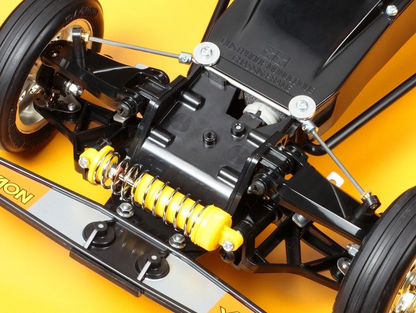

This classic model retains its highly dust-resistant monocoque frame and 4-wheel independent double suspension, while also receiving updates to make it suited to the modern R/C world.

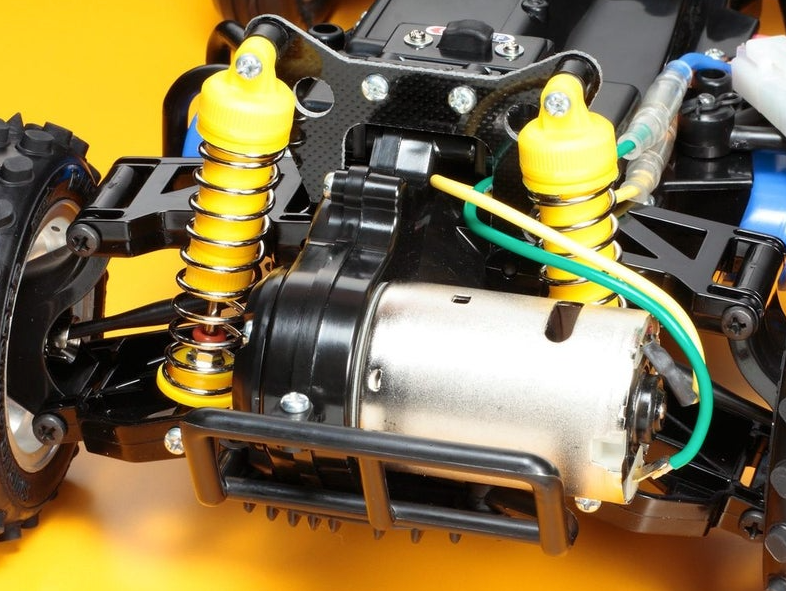

Dog-bone type drive shafts are added, as is a stabiliser to help neutralise roll. Sealed gearbox and rear uprights now include a total of 8 ball bearings as standard, providing even more effective power transmission.

Specifications

• Length: 425mm
• Height: 133mm
• Width: 225mm
• Weight: 1,140g (Not including R/C equipment and battery pack)
• Wheelbase: 260mm
• Tread: 198mm (Front), 183mm (Rear)
• Tire Width/Diameter: 23/83mm (Front), 38/88mm (Rear)
• ABS Resin Monocoque Frame
• Rear-Wheel 2WD
• 3-Bevel Differentials
• 4-Wheel Double Wishbone Suspension
• CVA Oil Dampers x3 (Front & Rear Total)
• Gear Ratio= 8.7:1, 7.25:1
• Type 540 Motor

Requires Electronic Speed Controller (sold separately) ※Cannot be used with Tamiya LF3700-6.6V Racing Pack (sold separately)

Separately Required Items

• 2-Channel R/C Unit with ESC　
• Battery Pack & Charger
• R6/AA/UM3 batteries for transmitter
