58692 Tamiya | Unimog

58692 Tamiya | Unimog

Regular price $499.00 NZD
Regular price $529.00 NZD Sale price $499.00 NZD
Sale Sold out
Shipping calculated at checkout.

A faithful friend

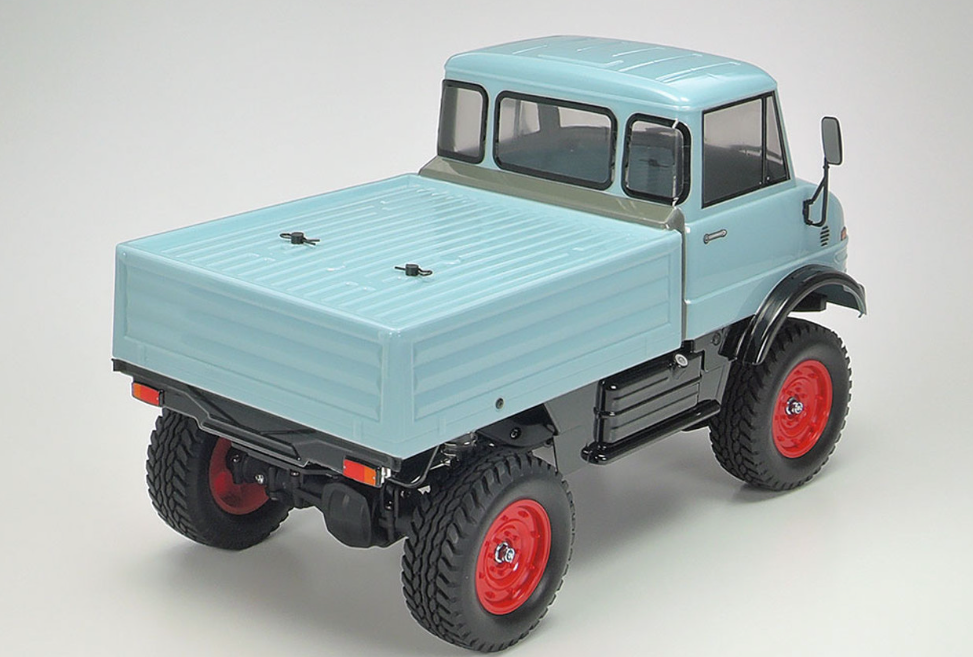

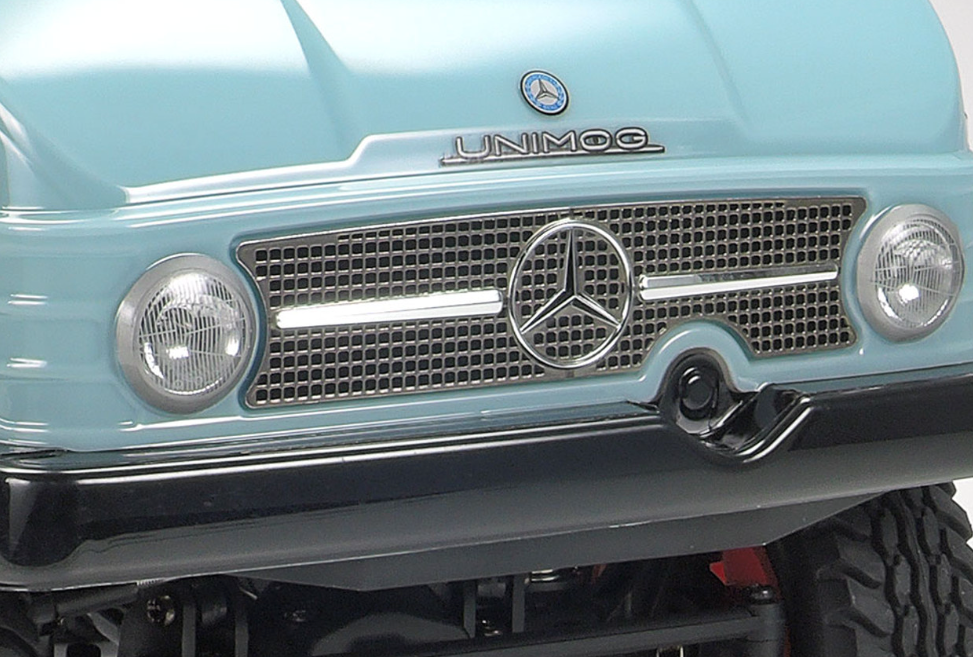

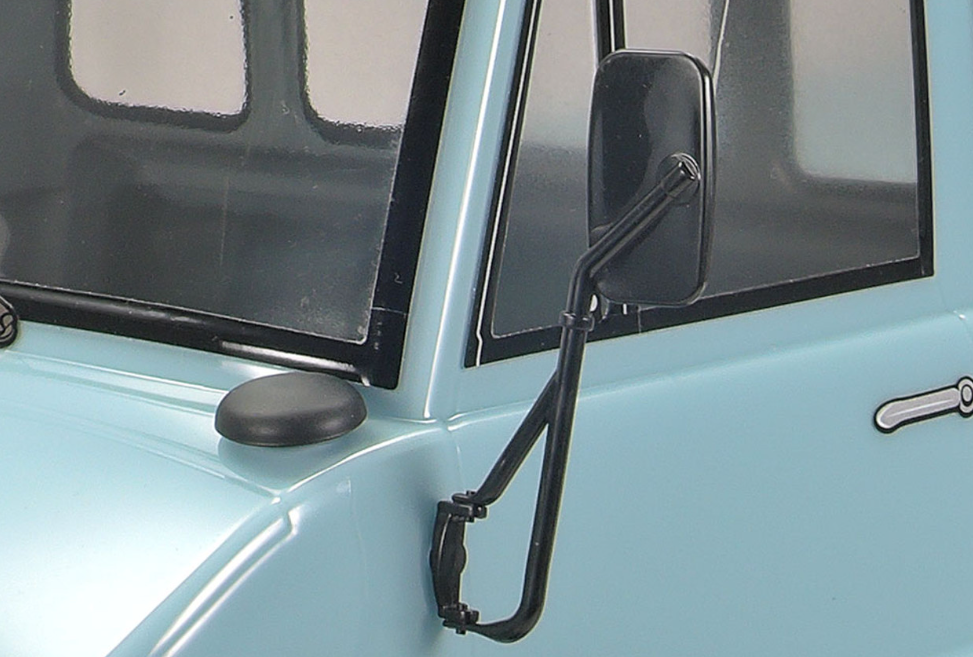

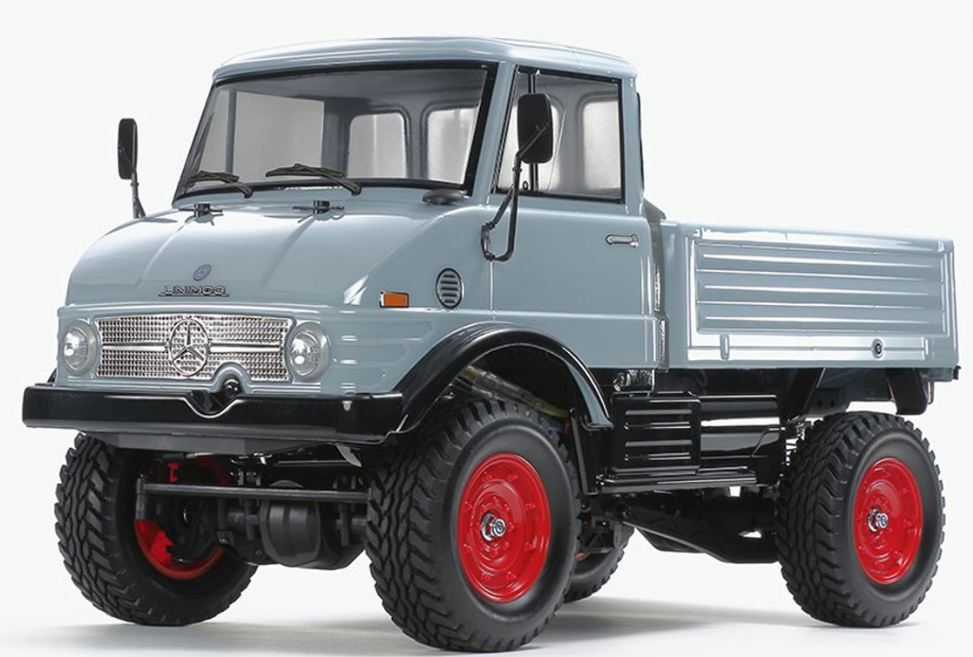

The Mercedes-Benz Unimog name is an acronym of the German "Universal-Motor-Gerät"; this R/C model assembly kit recreates the 406 Series vehicle that was a hit since its debut in 1963. A polycarbonate body recreates the distinctive form with curved hood and round headlights, with a separate metal-plated depiction of the front grille for extra realism, plus separately moulded side mirrors and air intake.

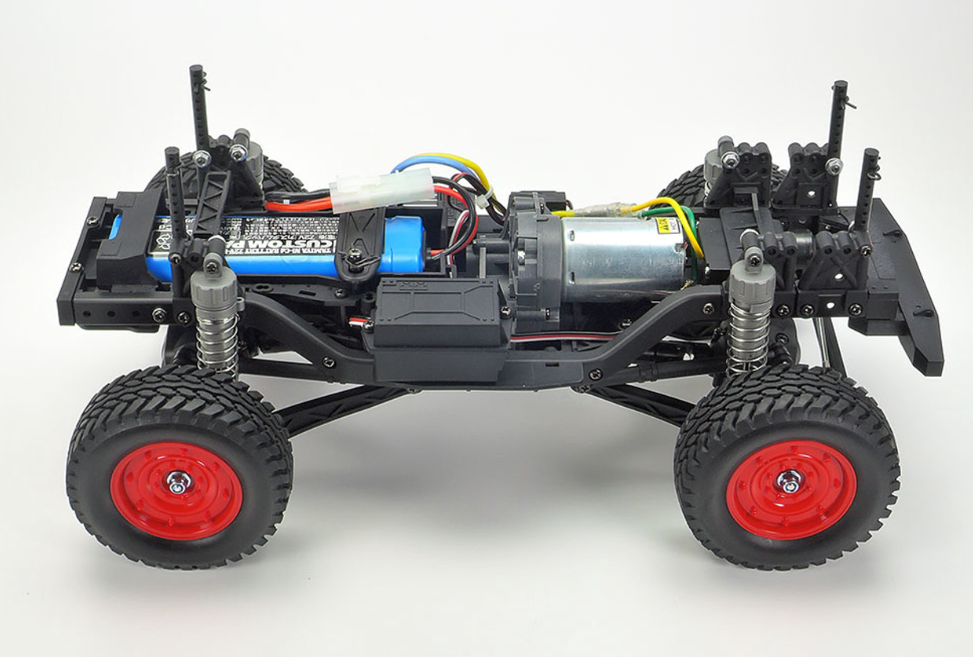

CC-02 Chassis - Off Road, Evolved

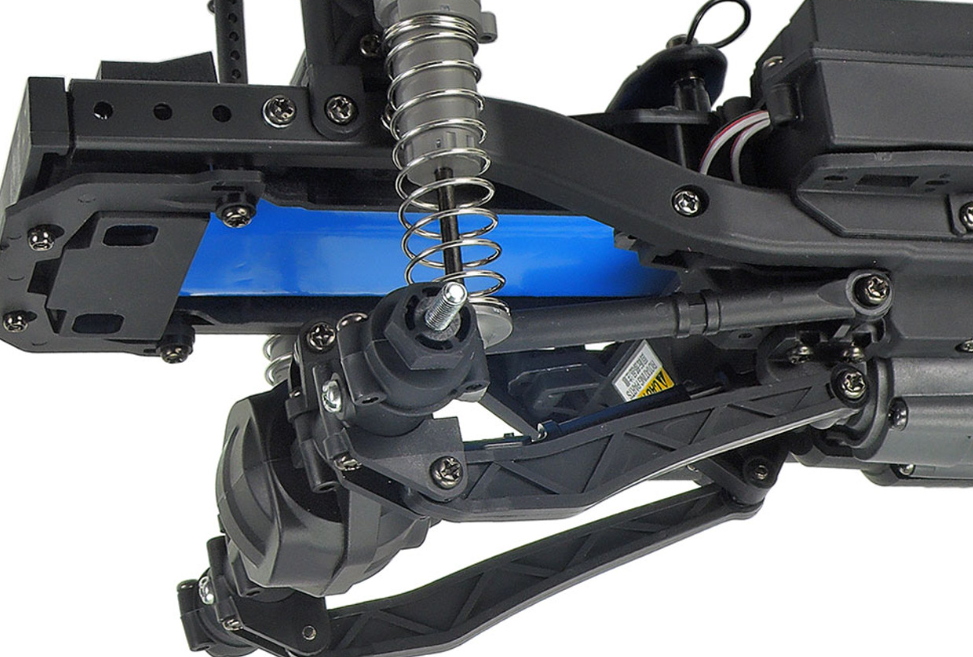

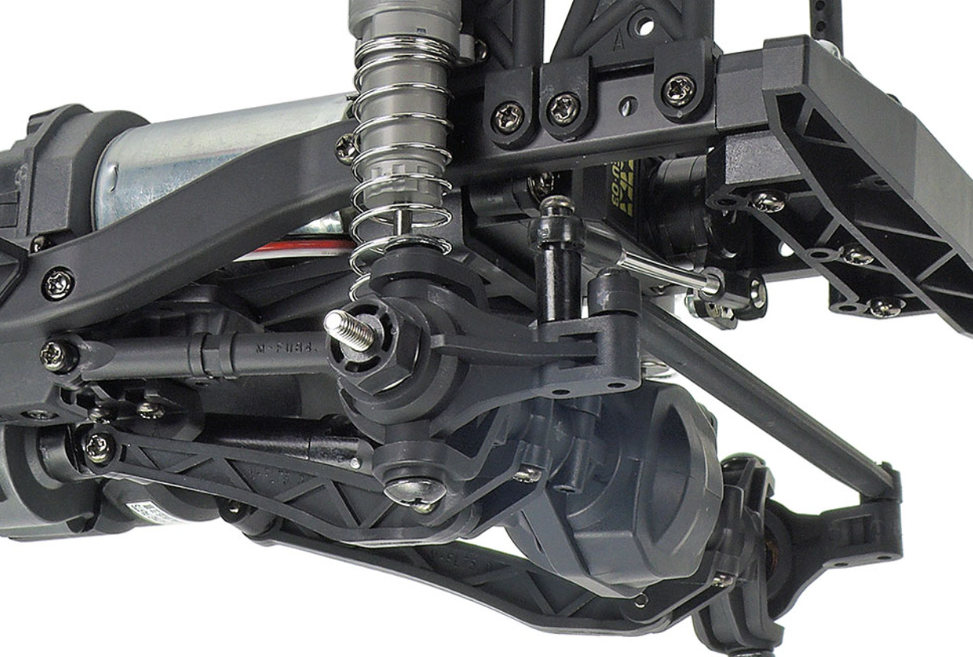

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with eye-catching red dish wheels and grippy block pattern tires.

Specifications

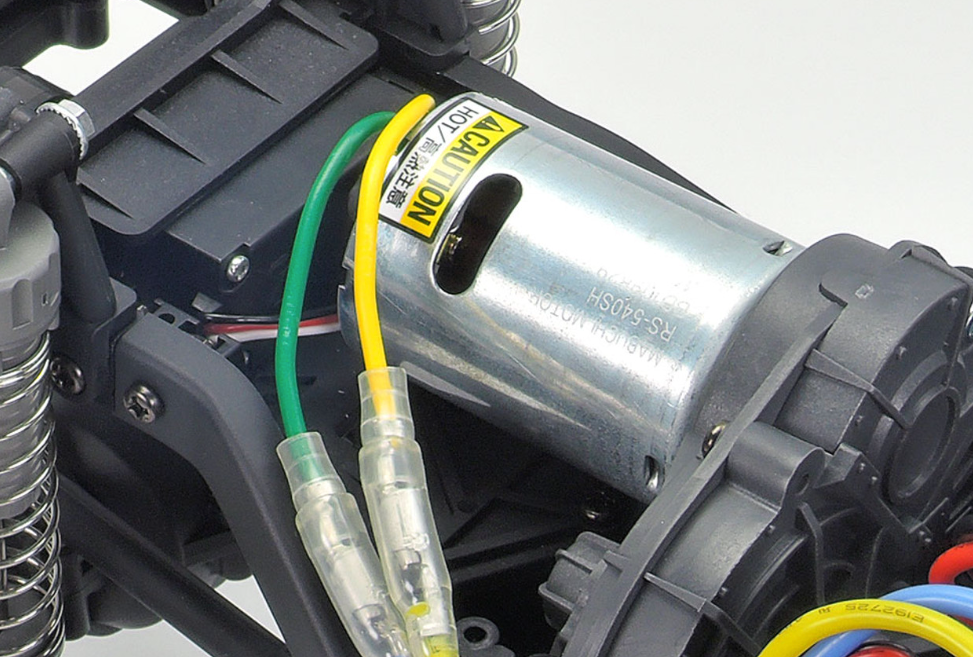

★Length: 384mm, Width: 196mm, Height: 224mm ★Wheelbase: 242mm ★Tread: 160mm (Front), 163mm (Rear) ★Tire Width/Diameter: 33/90mm (Front & Rear) ★Ladder Frame ★Longitudinal Motor, Shaft-Driven 4WD ★3-Bevel Differential Gears ★4-Link Rigid Suspension (Front & Rear) ★Gear Ratio = 17.33:1 (using kit-standard 16T pinion) ★Type 540 Motor ★Electronic Speed Controller (ESC) is included


Separately Required Items
●2-Channel R/C Unit ●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter. (Please search our Tamiya combo for pircing)
